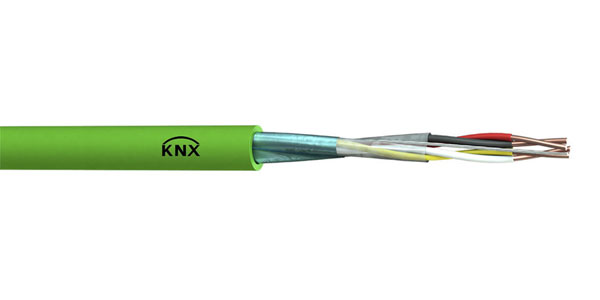

KNX Cable

KNX standard is based upon more than 15 years of experience in the market including its pre - decessors EIB, EHS and BatiBUS.

In May 1999 the KNX Association cvba was formed from combining:

• EIBA (European Installation Bus Association)
• EHSA (European Home Systems Association)
• BCI (BatiBUS Club International)

Its main objective is to promote the global standard for fieldbus applications in home and building control.

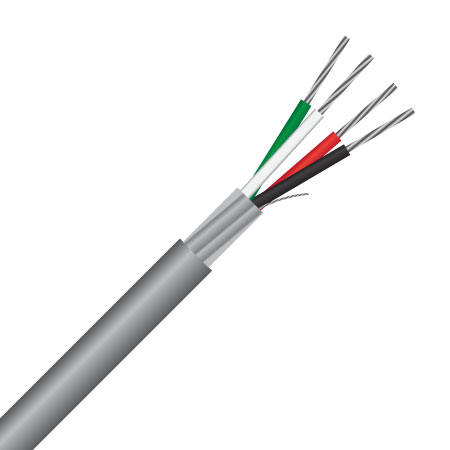

BMS Cables

Every building is a self-contained environment with different functionalities and designs. These differences lead to diverse performance requirements, thus demanding custom built solutions.

Our Building Management Systems bring your buildings to life by driving high performance systems for individual compoenents, be it business, leisure, entertainment or security.

• Any requirement is welcomed, in small and large production runs – No MOQ
• Standard lead time: 7 – 10 days from receipt of enquiry inbms cablescluding initial consultation and discussions
• Ability to work with free issue materials
• Hybrid cables combining data, power, video and audio to create an automation cable
• Choice of cable armour for mechanical protection
• Vast cable oversheathing stock portfolio – multiple grades of: PP, PE, PVC, PUR/TPU, Hytrel/TPE, TPV, LSOH/LSZH, Nylon PA12, PA/11
• Printing of final jacket with customer specified legend

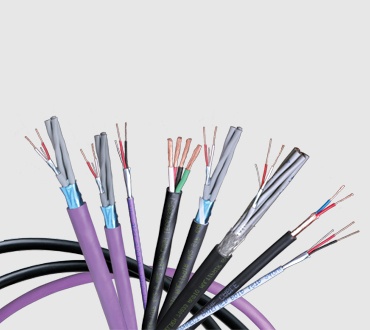

Control & Audio Cable

Belden offers a large variety of products for line level audio including analog or digital cables, such as Belden 9451 or 1800B. For recording studios, radio and television stations, sound system installations, or any multi-channel audio application, Belden also offers audio snake cables up to 32 pair. Audio snakes are available in riser and plenum versions for permanent install, ultra-flexible for temporary installations, or waterblocked versions. With a variety of options, our offering will satisfy the needs of every designer and system integrator.

• With Belden's patented Banana Peel plenum audio snakes, individually shielded and jacketed pairs can be split apart at any length and connectorized directly without the need for heat shrink tubing or cost and time-consuming preparation
• Feature a shorting fold technique to maintain metal-to-metal contact for improved high-frequency performance
• Foil shields bonded to the jacket provide easy stripping and faster installation

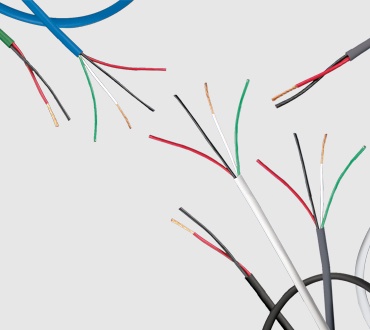

Speaker Cable

Belden offers speaker cables for a wide range of applications, including plenum, indoor/outdoor, halogen-free, direct burial, Class 1, and commercial and professional installations.

• All cables feature Electrolytic Tough Pitch (ETP) virgin copper construction. The speaker cable line includes direct burial speaker cable with ultra-high purity (99.995%), sometimes described as "oxygen-free" copper (OFC)
• Belden cables use soft drawn and annealed conductors which allow the cables to be flexed without breaking
• Belden jackets pull easier and are easier to strip, saving installation time and money

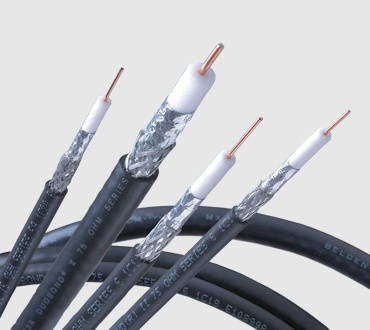

RG 6

Belden carries a comprehensive portfolio of broadband drop cables suitable to meet your broadband CATV application needs. Available options include indoor (CM, CMR, CMP), messengered and burial versions. Burial cables are constructed with flooding grease on the outer shield to provide maximum moisture protection. Engineered to meet or exceed ANSI/SCTE 74 industry standard requirements, these constructions are provided with standard foil/braid, tri or quad shielding to provide the level of RF leakage and interference protection required for your installation.

• All cables rated to 1 GHz
• Crush resistant dielectric material
• Corrosion resistant center conductor
• Shield options: dual shield (60% braid), tri-shield (77%), or quad shield (60%/40%)
• Indoor (CM, CMR, CMP), messengered and burial versions
• Meets or exceeds applicable ANSI/SCTE standards for drop coaxial cable

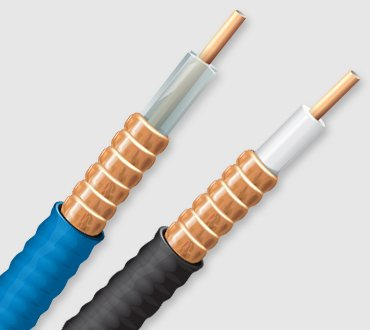

Coaxial Cable

Belden Low Loss ½” Coaxial Cables for Wireless Transmission allow building owners to support the growing numbers of people and devices utilizing their networks while providing strong signal strength and minimal interference. In environments where people expect constant uptime with no hiccups or delays, these cables can help boost revenue and satisfaction levels. When installing a new-generation wireless solution, such as Wi-Fi 6, 5G or small cells, Belden copper and fiber connectivity systems are designed and ready to handle the increased speeds and bandwidth required.

• Designed for low loss (attenuation), low passive intermodulation (PIM) and low-voltage ratio (VSWR) (return loss)
• Continuous annular corrugated copper outer conductor shields against EMI/RFI noise and makes it flexible to bend during installation
• Third-party ETL verification to UL CMP and CMR specifications
• Tested and qualified to terminate with JMA Wireless connectors
• Excellent performance: supports strong signal strength, minimal interference and fast, reliable wireless connectivity
• Provides peace of mind that public responders can communicate inside buildings during times of emergency
• Supports wireless technologies up to 6 GHz
