Fiber Interconnect Solutions

Fiber Interconnect Solutions

Rising to the demands of ever-increasing data, IoT, and big data and the critical nature of what that data drives is no easy feat. Using science and innovation we bring next generation solutions in fiber optics and copper interconnect that are designed to drive speed, performance and design flexibility.

Expanded beam optical interconnect solutions from Corning are designed to deliver improved dust immunity and excellent optical performance. Scalable connector designs enable quick installment and deployment of multi-link systems, lowering operating costs and delivering greater design flexibility. Our copper high-speed twin axial cables and assemblies are resonance-free, thin and foldable solutions designed for the needs of next generation requirements.

We bring decades of experience in interconnect solutions to the market segment. Our dedicated support team is here to provide specifications, drawings, 3D CAD models and more. Connect with us today so we can help you make the right connections in your data center.

Request a Quote

Single Mode and Multimode Fiber Optic Cables

Many decisions come into play when installing fiber optic cabling. By far, one of the most important questions is whether to install single mode or multimode. This decision has huge implications for your network’s distance, bandwidth, and budget, so it’s vital to understand the differences between these two types of fiber optic glass.

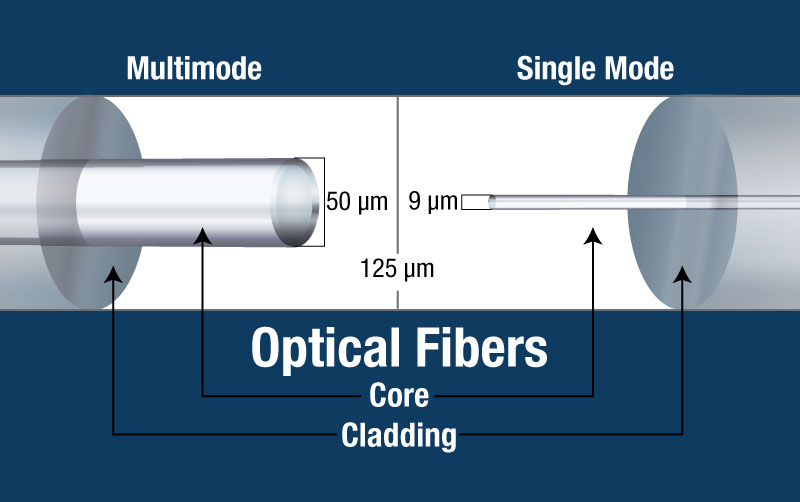

Before we discuss each type of fiber, here are some definitions:

Optical fiber: The glass portion of a fiber optic cable – no jacketing or strength members included. An optical fiber is made up of a light carrying core surrounded by cladding. The cladding prevents light from escaping the core, effectively keeping the signal moving down the glass.

Single mode fiber: a fiber featuring a small light-carrying core of about 9 micrometers (µm) in diameter. For reference, a human hair is closer to 100 µm. The core is surrounded by a cladding that brings the overall diameter of the optical fiber to 125 µm.

Multimode fiber: a fiber with a core of 50 µm or above. A larger core means multiple modes (or rays of light) can travel down the core simultaneously. Just like single mode, the core is surrounded by a cladding that brings the overall diameter of the optical fiber to 125 µm.

Fiber Patch Panels

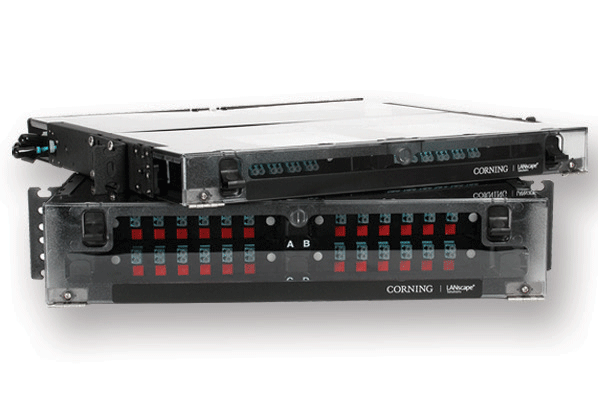

Corning CCH Fiber Patch Panels provide interconnect or cross-connect capabilities between outside plant, riser or distribution cables and opto-electronics. Like other LANscape solutions hardware, the housings accept CCH connector panels. In addition, the housings accept CCH cassettes and CCH modules.

From fiber and cable routing and strain relief, to port labeling and termination, these housings reduce the risk of error that can disrupt networks.

Closet connector housings (CCHs) provide interconnect or cross-connect capabilities between outside plant, riser or distribution cables and opto-electronics. Like other LANscape solutions hardware, the housings accept CCH connector panels. In addition, the housings accept CCH cassettes and CCH modules.

From fiber and cable routing and strain relief, to port labeling and termination, these housings reduce the risk of error that can disrupt networks.

Multimode fiber: a fiber with a core of 50 µm or above. A larger core means multiple modes (or rays of light) can travel down the core simultaneously. Just like single mode, the core is surrounded by a cladding that brings the overall diameter of the optical fiber to 125 µm.

Optical Distribution Frame (ODF`s)

The ever-increasing demand for bandwidth will continue to strain fiber management capabilities and require more density and scalability for your inside plant fiber distribution frame infrastructure. To meet your service-level agreements, a sound multi-network optical distribution frame (ODF) strategy must include infrastructure that can:

  • Provide a format expandable for future growth
  • Simplify and increase patch-cord management and storage
  • Improve adds and changes or eliminate mishandling of cabling assemblies leading to potential dB loss
  • Migrate to future generation of transmission and aggregation systems by equipment

The Optical Distribution Frame RFO meets this demand for more network capacity and reach, helping you meet the challenges that come with fiber management and migration to new technologies and equipment.

You can build the optical distribution frame (ODF) system that conforms to your fiber distribution requirements, with three RFO frame formats and two RFO chassis for optimal connectivity, management and scalability.

Fiber Patch Cords

Corning® offers the most complete line of connectors and factory-terminated cables, from single-fiber patch cords to high-fiber-count assemblies. As the industry’s leading supplier of cable assemblies, Corning's state-of-the-art manufacturing process ensures unsurpassed connector performance with products that meet or exceed all industry standards for reflectance and insertion loss. Highly trained and qualified associates thoroughly inspect the incoming fibers and ferrules, assemble and polish them using a carefully monitored and controlled process. The assemblies undergo rigorous performance testing to ensure optimal quality in every connector. Corning's pre-terminated assemblies use only high-quality Corning optical fibers to ensure total performance quality. Corning cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, MPO, FC, and ST® compatible. RoHS compliant indoor single-fiber cable (SFC), Zipcord, DFX®, MIC®, Fan-out, ribbon interconnect cables are available, as well as high fiber count, FREEDM® indoor/outdoor, and ALTOS® outdoor based assemblies.

Single Mode

  • Simplex & Duplex styles for LC, SC, ST and FC Connectors
  • Durable Ceramic Ferrules & PVC Jackets
  • 100% Optically Tested

Multi Mode

  • ClearCurve® bend insensitive fiber
  • Resists damage and loss in tight corners
  • In Stock

Uniboot Duplex

  • Single mode or Multimode duplex
  • Reverse Polarity for quick & easy conversion
  • Allows one cable to carry both fibers

Fiber Optic Splice On Pigtails

We supply fiber optic pigtails, using high quality Corning fiber SMF28e or MMF , including the single mode and multimode types, These fiber pigtails are with premium grade connectors and are available in many configurations. The typical 0.9mm outer diameter cables makes them easy to use with all type of fusion splicers. Simplex fiber pigtail and duplex fiber pigtails are available, with different multi cable color, cable diameter and jacket types optional.

The most common is know as the fusion splice on pigtail, and the 12 fiber or 6 fiber multi color pigtail array are easy to install and identify the fiber. Providing a premium quality fiber optic connection. We also offer Individual single pigtails in various colors, Discounted 6 packs, or 12 Packs. Also are 12 fiber or 6 fiber jacketed pigtails .

Our new 12 fiber ribbon cable pigtail is manufactured with a MTP connector or a MPO ribbon cable pigtail version.

All fiber optic pigtails can be made to any length to fit your exact project needs.

The fiber optic pigtail connectors are compliant to IEC, TIA/EIA, NTT and JIS specifications. It is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables. We supply the single mode 9/125, multimode 50/125 , multimode 10Gb OM3 50/125 and multimode 62.5/125 types fiber optic pigtail cables. They are with various PC, UPC, and APC connectors respectively. Our fiber pigtails are available in simplex or duplex versions, with custom design available. Connector Options SC, SC/APC, FC, FC/APC, LC, LC/APC, ST, ST/UPC, E2000, E2000/APC, SMA

LC Fiber Optic Pigtail

The LC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The LC Single mode fiber optic pigtail version, is typically a yellow jacket, the LC Multimode fiber optic pigtails is typically a orange or aqua jacket and the LC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


SC Fiber Optic Pigtail

The SC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The SC Single mode fiber optic pigtail version, is typically a yellow jacket, the SC Multimode fiber optic pigtails is typically a orange or aqua jacket and the SC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


SC/APC Fiber Optic Pigtail

The SC/APC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs and use a Green SC/APC connector. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The SC-APC Single mode fiber optic pigtail version, is typically a yellow jacket, theses can also be made for special applications that use a SC/APC Multimode fiber optic pigtails is typically a orange or aqua jacket and the SC/APC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


LC/APC Fiber Optic Pigtail

The LC/APC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs and use a Green LC/APC connector. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The LC-APC Single mode fiber optic pigtail version, is typically a yellow jacket, theses can also be made for special applications that use a LC/APC Multimode fiber optic pigtails is typically a orange or aqua jacket and the LC/APC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


ST Fiber Optic Pigtail

The ST Fiber optic pigtails are available in individual packs, 6 packs or 12 packs. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The ST Single mode fiber optic pigtail version, is typically a yellow jacket, the ST Multimode fiber optic pigtails is typically a orange or aqua jacket and the ST Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


FC Fiber Optic Pigtail

The FC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The FC Single mode fiber optic pigtail version, is typically a yellow jacket, the FC Multimode fiber optic pigtails is typically a orange or aqua jacket and the FC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


FC/APC Fiber Optic Pigtail

The FC/APC Fiber optic pigtails are available in individual packs, 6 packs or 12 packs and use a Green FC connector. Jacket Diameters vary including 900um, .9mm, 1.6mm, 1.8mm, 2.0mm, 3mm. The FC-APC Single mode fiber optic pigtail version, is typically a yellow jacket, theses can also be made for special applications that use a FC/APC Multimode fiber optic pigtails is typically a orange or aqua jacket and the FC/APC Multimode OM3 10 Gig Laser Optimized version is typically Aqua in Color.


12 Packs of Fiber Optic Pigtails

12 Packs of multi-color fiber optic pigtails. LC, ST, FC, SC, SC/APC, FC/APC, LC/APC Connector types available. 3 Meter 900 pigtails. See Connector types Above for details.


Fiber Optic Jacketed Pigtails

Available in multi-color 12 and 6 packs, for fusion splicing. LC, ST, FC, SC, SC/APC, FC/APC, LC/APC Connector types available. 3 Meter Jacketed pigtails. See Connector types Above for details.


Individual Fiber Optic Pigtails

Individual Pigtails are available in a typical 900um, .9mm, 1.6mm, 1.8mm, 2.0mm and 3mm. Available is any length. The most common and in stock are the 900um type. See Connector types Above for details.
