Copper Interconnect Solutions
Copper Interconnect Solutions
Rising to the demands of ever-increasing data, IoT, and big data and the critical nature of what that data drives is no easy feat. Using science and innovation we bring next generation solutions in fiber optics and copper interconnect that are designed to drive speed, performance and design flexibility.
Expanded beam optical interconnect solutions from Corning are designed to deliver improved dust immunity and excellent optical performance. Scalable connector designs enable quick installment and deployment of multi-link systems, lowering operating costs and delivering greater design flexibility. Our copper high-speed twin axial cables and assemblies are resonance-free, thin and foldable solutions designed for the needs of next generation requirements.
We bring decades of experience in interconnect solutions to the market segment. Our dedicated support team is here to provide specifications, drawings, 3D CAD models and more. Connect with us today so we can help you make the right connections in your data center.
Request a QuoteCopper Structured Cabling System Hardware

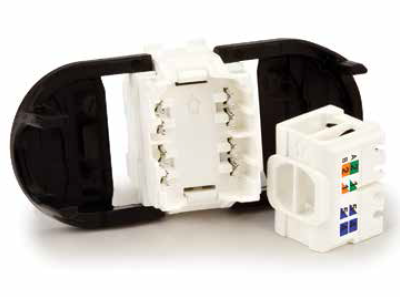

RJ45 Cat.6A UTP Jacks
Our Cat.6A copper interconnect products work together to provide an easy-to-use solution for deploying high-speed connections throughout a building. The RJ45 jack is a key component in this system. These RJ45 jacks have been certified by an independent test laboratory to hardware certification. Each jack component is able to terminate to any certified Cat.6A cable and patch cord combination to achieve full channel performance.

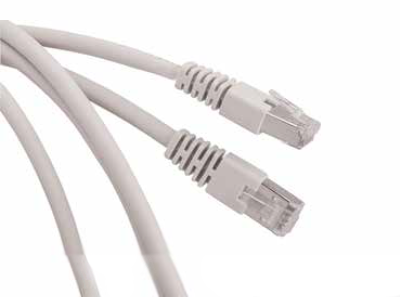

Cat.6A UTP Copper Patch Cords
Hardware-compliant copper patch cords enable you to complete your network to Cat.6A according to ANSI/ TIA 568-C.2 and Class EA ISO 11801/EN 50173-1. They are constructed with unshielded twisted-pair (UTP) stranded cable, low-smoke, zero-halogen (LSZH™ ) rated jacket and protected latch to ensure durability. These patch cords are available in a variety of lengths and colours for easy cable management and administration.

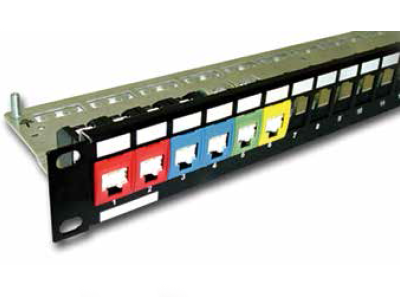

Patch Panels
Copper patch panels are modular and provide an aesthetically pleasing solution for housing modular jacks. These lightweight, aluminium panels are compatible with RJ45 jacks as well as typical industry-accepted modular jacks. The classic version includes a cable-strain-relief tray and earth-connection point. The Eco panels are a simple version, without an earth-connection point, to use with racks with integral cable management.

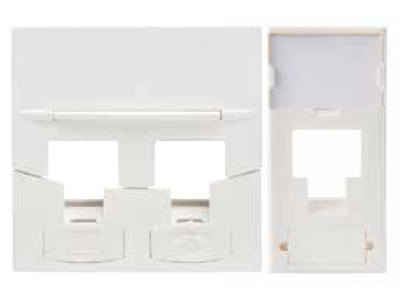

Faceplates and Outlets
Faceplates are compatible with most electrical wall boxes and are available in 2-port and 4-port versions. These faceplates fit common European dimensions and are compatible with RJ45 modular jacks. Port icons for port identification as well as label windows are included in some products.

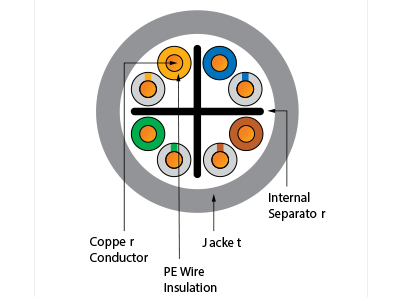

Copper Cable
Our four-pair copper cable is high performing and compliant with IEC 61156-5:2013 (ed. 2.1) and EN 50288-10- 1: 2012. The Cat.6A cable is U/UTP with an integral cross separator structure to enhance long-term performance and reduce crushing risk at cable anchorage points. This cable has a discontinuous foil tape wrapping, to minimise alien cross-talk (ANEXT) between cables. The cables are easy to install with sheath-length marking, providing convenient clearly identifiable cable and link lengths. The cable listed below is green. Other colours are available on request.
